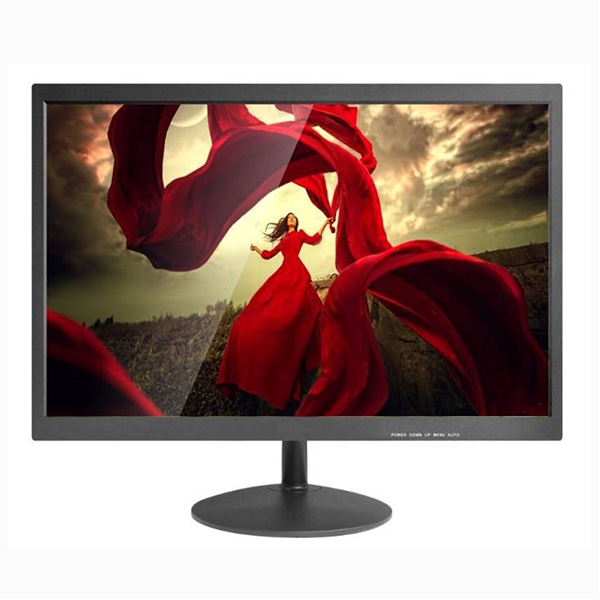

H22M11215A

    OC Model  COST ST2151B01-1 Panda LC215DTCA Panda LC215DTBA
    Aspect Ratio A+:A(033:335=8:2) A+:A(033:335=8:2) A+:A(033:335=8:2)
    Panel Type  Ordinary display (with border) Ordinary display (with border) Ordinary display (with border)
    Display Type LED Display, Ultra-wide Display  LED Display, Narrow View Display  LED Display, Wide View Display
    Panel   LED Display Type HVA TN TN
    Curvature Flat Screen  Flat Screen  Flat Screen
    Screen Size 21.5“ 21.5“ 21.5“
    Native Resolution 1920x1080 1920x1080 1920x1080
    Backlight LED Backlight LED Backlight LED Backlight
    Brightness(Max) 220cd/m2 220cd/m2 220cd/m2
    Brightness 160+/-20 cd/m2 160+/-20 cd/m2 160+/-20 cd/m2
     Default Color Temperature warm warm warm
    Contrast Ratio Static Contrast Ratio: 4000:1 Static Contrast Ratio: 600 : 1 Static Contrast Ratio: 1000 : 1
    Dynamic Contrast Ratio: Million level Dynamic Contrast Ratio: Million level Dynamic Contrast Ratio: Million level
     Number of Colors 16.7M 16.7M 16.7M
     Viewing Angle 178°(H)/178°(V) 90°(H)/65°(V) 170°(H)/160°(V)
     Response time 6.5ms 5ms 5ms
     Refresh Frequency 60Hz 60Hz 60Hz
     Pixel Pitch 0.24825mm 0.24825mm 0.24825mm
      Interface Type VGAx1, No Audio VGAx1, No Audio VGAx1, No Audio
    Power Supply  Input Voltage 100-240V AC,50-60Hz 100-240V AC,50-60Hz 100-240V AC,50-60Hz
    Type External power supply External power supply External power supply
    Power Consumption 25W(Standby power consumption0.5W)  25W(Standby power consumption0.5W)  25W(Standby power consumption0.5W)
    Structure Color Black Black Black
    Monitor size 505*39.3*307mm(without stand) 505*39.3*307mm(without stand) 505*39.3*307mm(without stand)
    505*39.3*381.4mm(with stand) 505*39.3*381.4mm(with stand) 505*39.3*381.4mm(with stand)
    572*440*106(With Packaging) 572*440*106(With Packaging) 572*440*106(With Packaging)
     Weight  NW: About 2.6kg  NW: About 2.6kg  NW: About 2.6kg
     GW: About 3.4kg  GW: About 3.4kg  GW: About 3.4kg
     Wall Mounted Function  With two wall hangings screw nuts  With two wall hangings screw nuts   With two wall hangings screw nuts
     Base Function  Support Tilt   Support Tilt   Support Tilt
     OSD Control  Control Mode  Button  Button  Button
     Menu Language English,Simplified Chinese English,Simplified Chinese English,Simplified Chinese
     Circumstance  Storage Temperature -20ºC~60ºC -20ºC~60ºC -20ºC~60ºC
     Working Temperature 0ºC~50ºC 0ºC~50ºC 0ºC~50ºC
     Working Humidity 10~90%RH 10~90%RH 10~90%RH
     Energy Level 2015 II 2015 II 2015 II
     Altitude 2000m 2000m 2000m
     Accessories List  Accessories VGA*1;Adapter*1Instruction Manual+Repair, replacement, return certificate +Qualified Certificate*1Charge base*1 VGA*1;Adapter*1Instruction Manual+Repair, replacement, return certificate +Qualified Certificate*1Charge base*1 VGA*1;Adapter*1Instruction Manual+Repair, replacement, return certificate +Qualified Certificate*1Charge base*1
